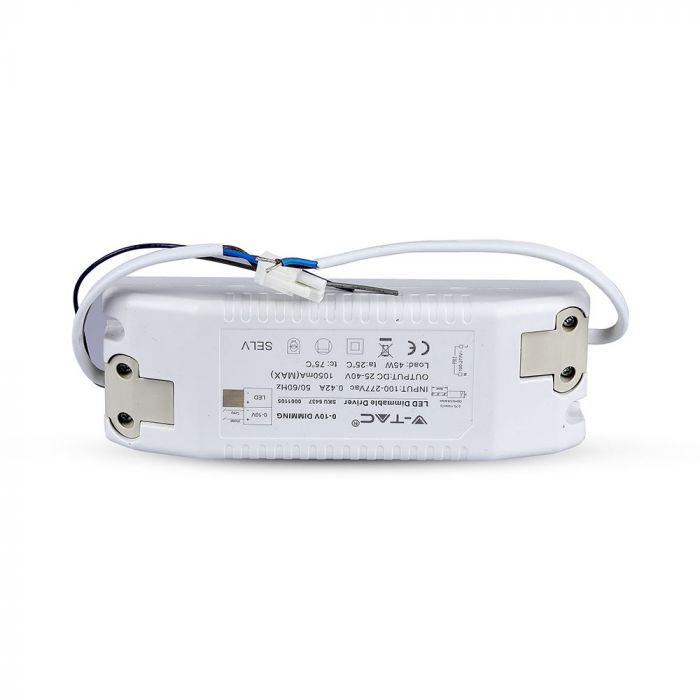

45W DIMMABLE(0-10V) DRIVER FOR LED PANEL
SKU 6437
EAN 3800157630337
-
Local Warehouse: 52 pcs
-
Local Transit: -
-
Quantity in package: 50 pcs
-
Global Warehouse: 594 pcs
-
Global Transit: -
-
ETA: No ETA
Specification
- Dimmable Yes
- Output Voltage DC:25-40V
- On Sale No
- Watts 45
- Input Power AC:100-277V, 50/60Hz
- Dimension 176x59x38mm
- Operation Temperature -25°C to +50°C
- Output Current 1050mA
- Input Current 0.42A
- Model 0
- IP Rating IP20
- Dimmable Type 0-10V
- EMC Certificate Check the certificate
- LVD Certificate Check the certificate
- ROHS Certificate Check the certificate
Packaging
- Ean Code 3800157630337
- Commodity Code 85044090
- Length (Box) mm 180
- Width (Box) mm 40
- Height (Box) mm 72
- Unit CBM 0.000532
- Gross Weight (Kgs) 0.28
- Inner Box Qty
- Box Qty 50
- Qty Per Pallet 1500
Features
- 45 watts dimmable driver
- 0-10V Dimming type
- EMC, SELV and LVD Compliant
- High quality capacitors for better case temperature
- Compatible with V-TAC Recessed LED Panels
