10kW ON GRID SOLAR INVERTER WITH LCD DISPLAY-THREE PHASE IP65
SKU 11373
EAN 3800157689311
Express
Contact your Area Sales Manager
-
Local Warehouse: 10 pcs
-
Local Transit: -
-
Quantity in package: 12 pcs
-
Global Warehouse: 10 pcs
-
Global Transit: -
-
ETA: No ETA
Specification
- On Sale No
- Input Power 11kW
- Dimension 360x575x150mm
- Operation Temperature -25°C to +60°C
- Output Current 14A Max
- Output Power 10kW
- Max. Efficiency 98.30%
- Model VT-6610305
- IP Rating IP65
Packaging
- Ean Code 3800157689311
- Commodity Code 8504408890
- Length (Box) mm
- Width (Box) mm
- Height (Box) mm
- Unit CBM 0.111666
- Gross Weight (Kgs) 26.83333
- Inner Box Qty
- Box Qty 12
- Qty Per Pallet
Features
- High-Performance Solar Inverter with LCD and DC Switch
- Enhanced Electrical Data: Features a maximum DC current per MPPT of 12.5x2 and a max output current of 14A.
- High Voltage: Has a maximum input voltage of 1000V and an MPPT range of 200-800/610V.

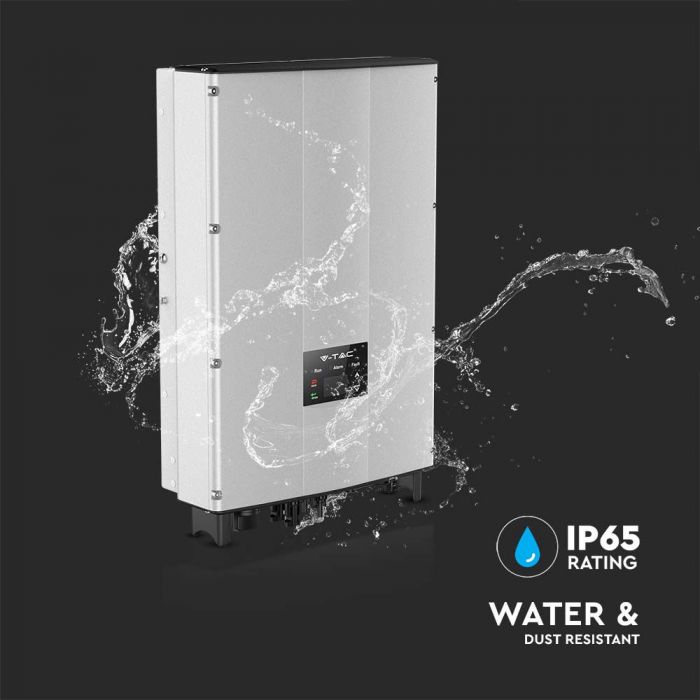

- Durable: Comes with a durable IP65 rating that withstands tough working conditions.
- Wide Temperature Range: Operates efficiently within a temperature range of -25°C to +60°C.
- Compact Size: Has dimensions of 575x360x150, making it easy to install.
- Powerful: This 10kW On-Grid, Three-Phase inverter delivers powerful performance.
- Warranty: Comes with a 5-year warranty, extendable by another 5 years.
Certificates will be uploaded soon.
