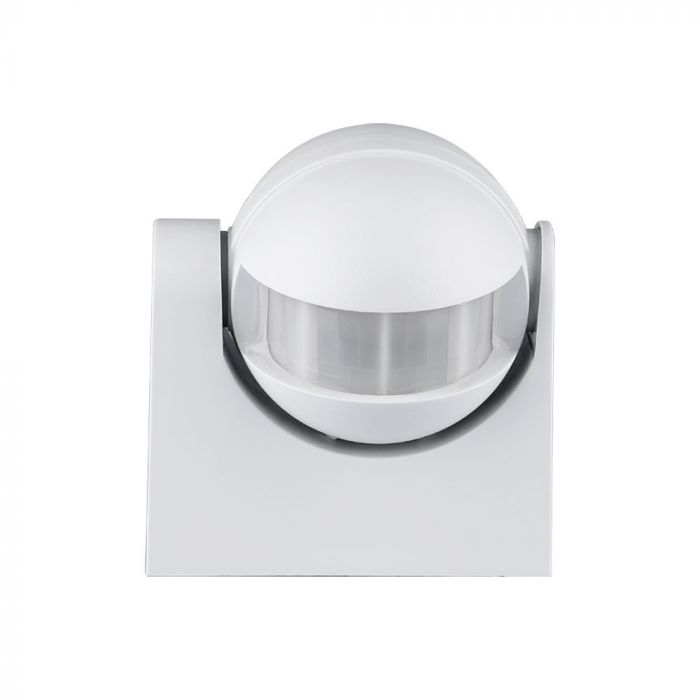

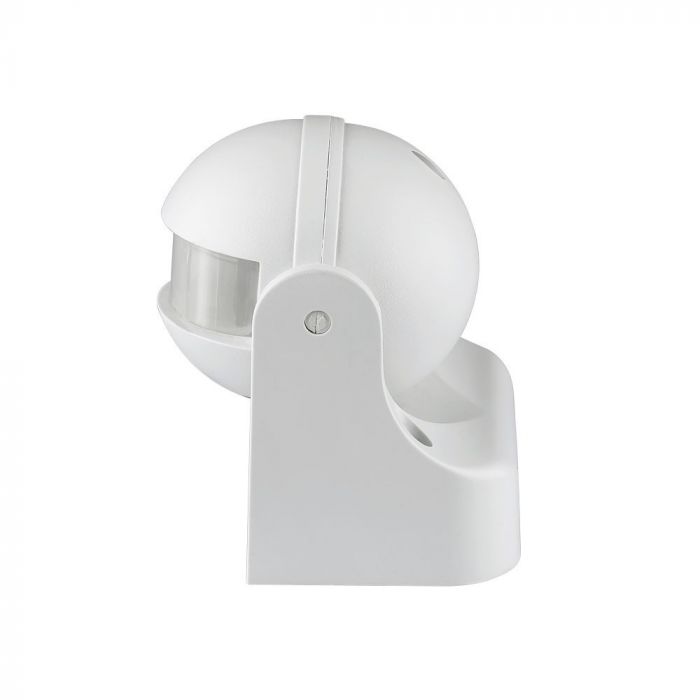

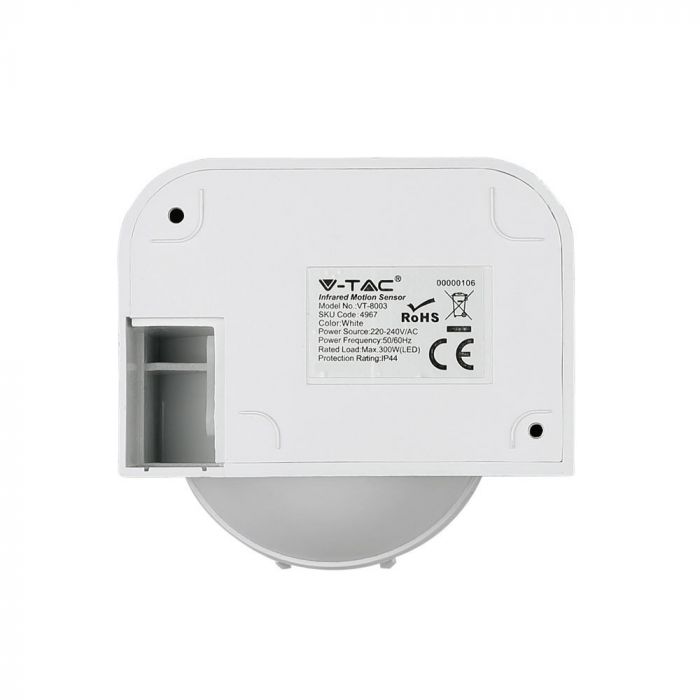

VT-8003 INFRARED MOTION SENSOR, IP44 (MAX:300W LED)
SKU 4967
EAN 3800230625823
-
Local Warehouse: 10 pcs
-
Local Transit: -
-
Quantity in package: 50 pcs
-
Global Warehouse: 1864 pcs
-
Global Transit: -
-
ETA: No ETA
Specification
- Dimmable N/A
- On Sale No
- Input Power AC:220-240V, 50/60Hz
- Unit Color White
- Body Type Plastic Clad Aluminium
- Dimension 86.4x60.4x98mm
- Operation Temperature -25°C to +50°C
- Detection Range 180°
- Time Delay Min 10sec±3sec, Max 7min±2min
- Rated Load Max 300W LED
- Detection Motion Speed 0.6-1.5m/s
- Ambient Light <3-2000LUX(adjustable)
- Installation Type Surfaced
- Detection Angle 180
- Detection Distance Max 12m(<24°C)
- Model VT-8003-W
- IP Rating IP44
- Sensor Type Infrared
- EMC Certificate Check the certificate
- LVD Certificate Check the certificate
- ROHS Certificate Check the certificate
Packaging
- Ean Code 3800230625823
- Commodity Code 85365080
- Length (Box) mm 90
- Width (Box) mm 74
- Height (Box) mm 102
- Unit CBM 0.000675
- Gross Weight (Kgs) 0.2
- Inner Box Qty
- Box Qty 50
- Qty Per Pallet 1750
Features
- Infrared motion sensor with integrated circuit can detect heat signatures
- Adjustable Time Delay - Ambient light - Detection distance for versatile scenarios
- High quality receptors for instant functioning
- Effective system for energy saving and safety
- Compatible with V-TAC models
