VT-8027 PIR CEILING SENSOR(FLAT) - MAX:1000W LED
SKU 5086
EAN 3800157609173
-
Local Warehouse: 13 pcs
-
Local Transit: -
-
Quantity in package: 50 pcs
-
Global Warehouse: 18 pcs
-
Global Transit: -
-
ETA: No ETA
Specification
- Dimmable N/A
- On Sale No
- Input Power AC:220-240V, 50/60Hz
- Unit Color White
- Body Type PC
- Dimension Ø115x25mm
- Operation Temperature -25°C to +50°C

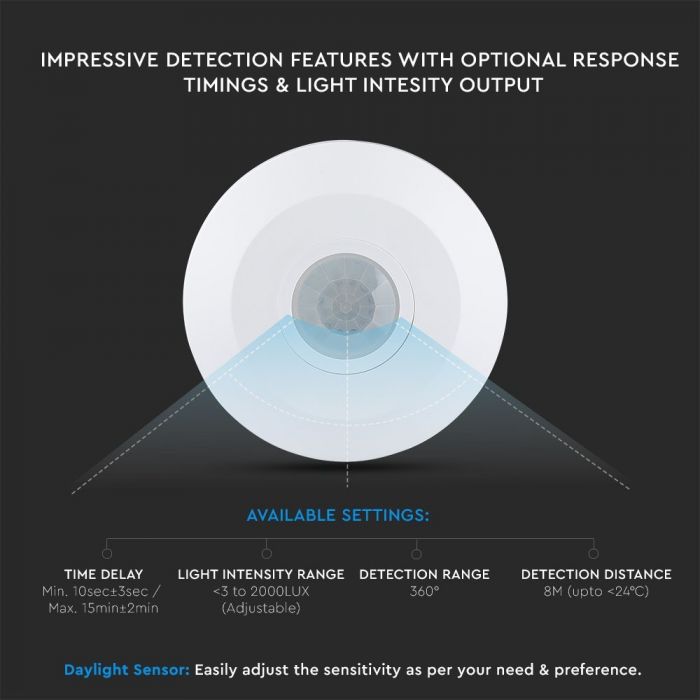

- Detection Range 360°
- Time Delay Min 10sec±3sec, Max 15min±2min

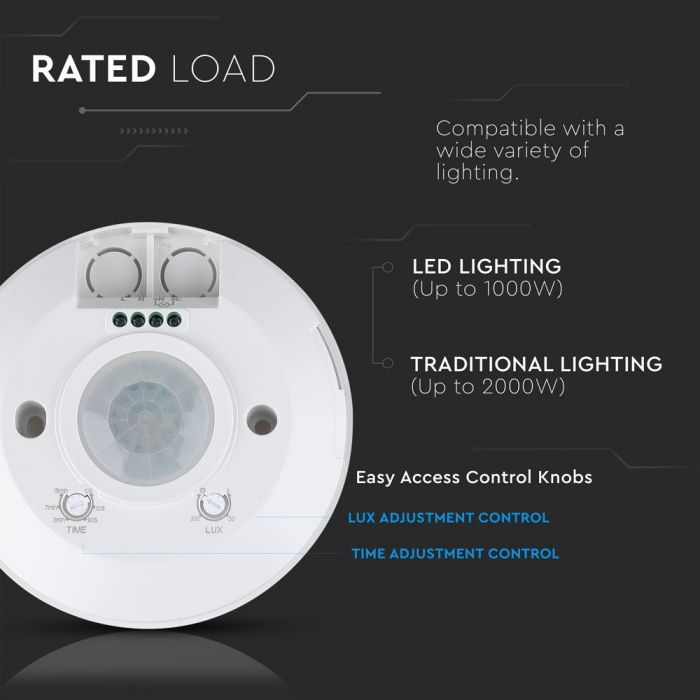

- Rated Load Max 1000W LED
- Detection Motion Speed 0.6-1.5m/s
- Ambient Light <3-2000LUX(adjustable)
- Installation Type Surfaced
- Detection Angle 360
- Detection Distance Max 8m(<24°C)
- Model VT-8027-W
- IP Rating IP20
- Sensor Type Infrared
- EMC Certificate Check the certificate
- LVD Certificate Check the certificate
- ROHS Certificate Check the certificate
Packaging
- Ean Code 3800157609173
- Commodity Code 85365080
- Length (Box) mm 120
- Width (Box) mm 35
- Height (Box) mm 124
- Unit CBM 0.000525
- Gross Weight (Kgs) 0.14
- Inner Box Qty
- Box Qty 50
- Qty Per Pallet 1500
Features
- Infrared motion sensor with integrated circuit can detect heat signatures
- Adjustable Time Delay - Ambient light - Detection distance for versatile scenarios
- High quality receptors for instant functioning
- Effective system for energy saving and safety
- Compatible with V-TAC models
